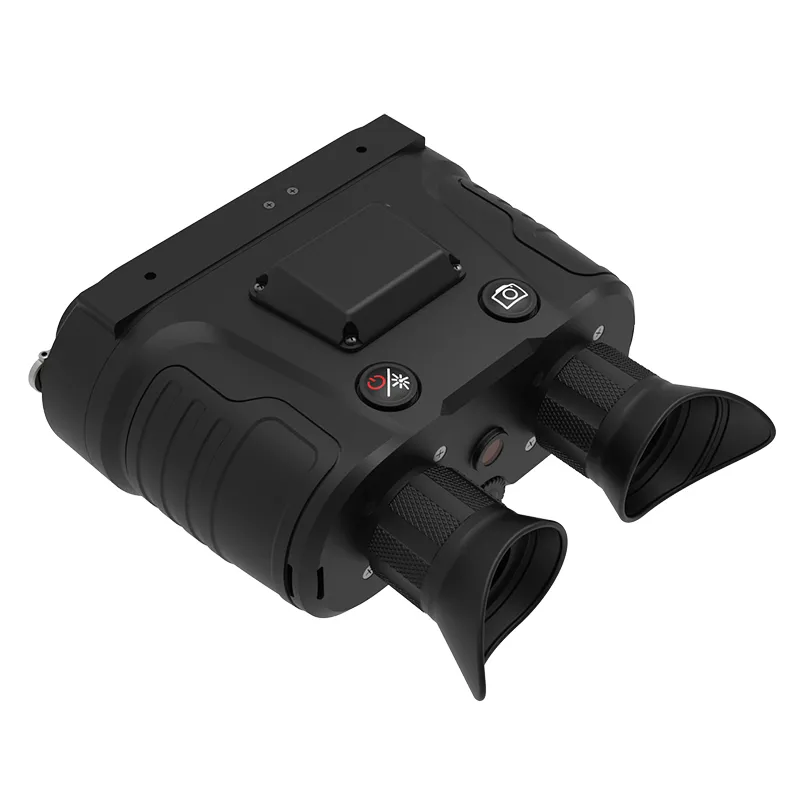

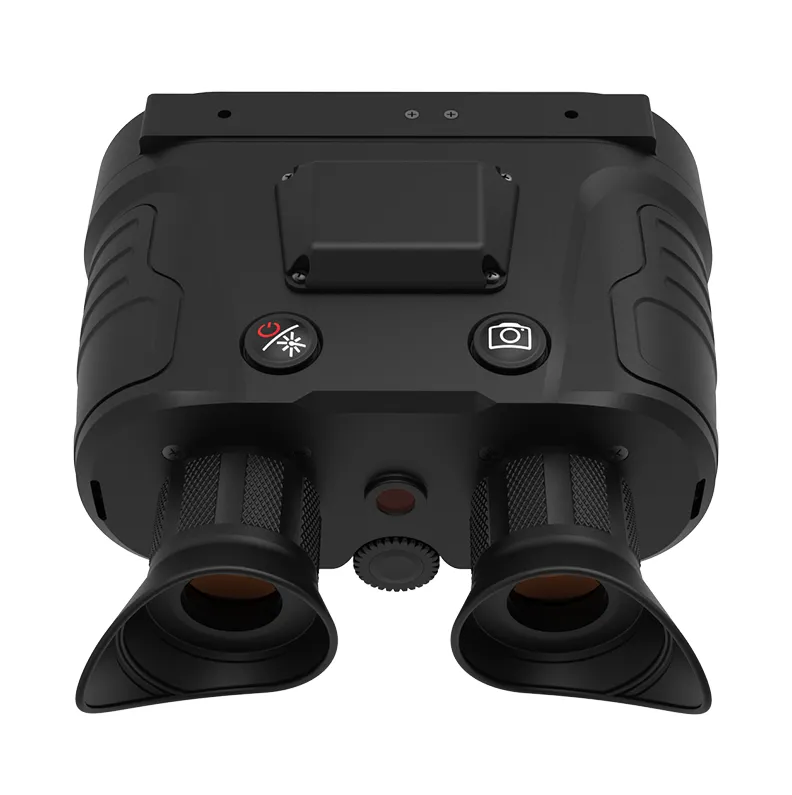

Re620 Binocular Fusion Thermal Imaging Handheld Detection Device
Onick RE620 fusion thermal imaging handheld reconnaissance instrument is equipped with low light detector, infrared detector, OLED display and large field of view eyepiece. It has the combat capability to quickly break the concealment of the target and lock the target in bad weather such as smoke, fog, rain and snow.
Product Details
Product Details
Onick RE620 fusion thermal imaging handheld reconnaissance instrument is equipped with low light detector, infrared detector, OLED display and large field of view eyepiece. It has the combat capability to quickly break the concealment of the target and lock the target in bad weather such as smoke, fog, rain and snow. It has the dual light fusion and target highlighting functions. On the basis of meeting the long-distance target detection, it integrates the target details and improves the target recognition. At the same time, it combines the video and photo functions to record and restore the scene.
Product features:
1. Control functions such as taking photos, recording, playback, retrieval and deletion;
2. Infrared images, low light and fusion images can be switched for display, and the switching time is less than 1s;
3. Observation mode: infrared, low light, jungle, snow, desert and other fusion mode observation;
4. Power control, undervoltage indication, battery reverse connection protection function;
5. Image brightness, contrast, enhancement and other adjustment functions; screen brightness adjustable function;
6. Compass azimuth guidance function; support wifi and GPS positioning function;
7. With accidental power failure information and status backup function;
8. Image display includes real-time information such as azimuth, time and power;
Application field:
Onick RE620 binocular fusion thermal imaging long-distance target detection weapon. It has the ability to quickly and automatically lock the target in severe weather such as smoke, fog, rain and snow, can record and take pictures, can record and restore the scene, and can be used in patrol, law enforcement, search and rescue, drug control and anti-smuggling and other scenes. It is suitable for special forces such as public security, armed police, and the army to achieve effective all-weather observation of specific areas or targets, and quickly discover, identify, and track targets of concern; it is also suitable for firefighting, electricity, and petroleum industries to achieve day and night monitoring of specific areas or equipment.
| Field of view | ≥12.5°×10°; |
| Infrared thermal imaging | |
| Detector resolution | 640×512 |
| Identification distance | ≥600m. |
| Focal length adaptation range | |
| Contrast, brightness adjustment, image polarity conversion | |
| Low-light imaging | |
| Resolution | 800×600; |
| Identification distance | ≥700m. |
| It has contrast, brightness, and enhancement adjustment functions. | |
| Fusion imaging | |
| Resolution | 640×512; |
| Identification distance | ≥750m. |
| It has contrast, brightness, and enhancement adjustment functions. | |
| Working time | ≥4h |
| Electromagnetic compass accuracy | |
| Orientation accuracy | ≤1° (RMS, host tilt range -15°~15°) |
| Eyepiece display | |
| Binocular observation; | |
| Magnification | ≥14 times; |
| Eyepiece diopter adjustment range | diopter ≥-4SD ~+4SD |
| Storage capacity | ≥32G |
| Dimensions and weight | |
| Dimensions | ≤155mm*154mm*72mm |
| Weight | ≤1kg |
| External power supply | |
| Average power consumption during operation | ≤5W |
| Working voltage | DC9-12V |
| Environmental adaptability | |
| High temperature operation | +55℃ |
| Low temperature operation | -20℃ |
| Accessories | packaging box, shoulder strap, charger set, data cable, 4 18650 batteries, warranty card product manual, certificate of conformity, instruction manual, lens cloth |
